Trimester 3 Retrospection - Rohan Bojja

• 6 min read

Trimester 3 CS 113 Course Requirements Retrospection

CS 113 Master Requirements Table

Learning Objective Pasted Evidence Requirement My Completion & Code File Reference GitHub Issue
Data Structures
Collections Use appropriate Java collections in backend Used ConcurrentHashMap and ArrayList in BathroomQueueApiController.java & FaceApiController.java #47
Lists Implement list operations for managing data Handled List<String> searching and index checks via split conversions in BathroomQueue.java #48
Stacks/Queues Apply stack/queue structures where appropriate Constructed custom FIFO scheduling waitlist queues in BathroomQueue.java #49
Trees Map database index structures to recursive tree models Analyzed B-Tree index structures inside SQLite/JPA database search indexes #50
Sets Use sets for unique data management Implemented Set<WebSocketSession> in WebSocketHandler.java for unique active socket connections #51
Dictionaries/Maps Implement key-value mappings for efficient lookup Mapped composite keys (student-teacher) to timestamps in BathroomQueueApiController.java #52
Graphs Model relationships or dependencies using graph structures Modeled Directed Acyclic Graph (DAG) level progression flow in planetNavigation.js #53
Algorithms
Searching Implement search algorithms Facial Scan / GitHub ID search index lookups in FaceApiController.java #54
Sorting Apply practical sorting using Comparator/Comparable Sorted crypto balances and backup directories using Stream Comparators in RankingsController.java #55
Hashing Use hashing for passwords and data integrity Hashed user authentication records via Spring BCrypt in SecurityConfig.java #56
Algorithm Analysis Analyze time/space complexity of algorithms Documented Big-O complexity tables for maps, arrays, and queues #57
Object-Oriented Design
Abstraction Create abstract classes or interfaces to define contracts Defined abstract SQL bindings using PersonJpaRepository interfaces #58
Encapsulation Hide implementation details using private fields Encapsulated biometric fields and occupancy records in Person.java & BathroomQueue.java #59
Inheritance Extend base classes for specialized functions Inherited core game properties using FriendlyNpc extending Npc in the pathway engine #60
Polymorphism Override methods, use flexible interface designs Polymorphically instantiated gatekeeper NPC reaction closures in GameLevelCsPath0Forge.js #61
Design Patterns Apply OOD patterns (MVC, Repository, Factory) Implemented MVC web layouts, Repository decoupling, and transactional Service separations #62
Software Development
Version Control Use Git for branching, committing, pull requests Structured atomic commits and review cycles on Rbojja23/rohan_2025 and core portals #63
Testing Write unit tests, integration tests, API tests Mocked repository behaviors under JUnit 5 with Mockito in FaceApiControllerTest.java #64
Build Tools Use Maven/Gradle for dependency management Configured Lombok and Database Driver dependencies inside Maven pom.xml #65
Debugging Use IDE debugger, logging, breakpoints Instrumented Logback logging diagnostics in FaceApiController.java and browser inspect tools #66
API Development Design RESTful APIs with proper HTTP methods Developed /api/face/register/public POST endpoints in FaceApiController.java #67
Database Integration Implement JPA/Hibernate with proper relations Mapped @ManyToOne structural relationships between OCSAnalytics and Person #68
Deployment
Docker Create Dockerfile and docker-compose configurations Configured SQLite database mounting and multi-connector expose maps in Dockerfile #69
DNS Configuration Configure custom domain with proper records Set up DNS A records to route to spring.opencodingsociety.com securely #70
Nginx Set up nginx as a reverse proxy for backend services Handled TLS offloading and WebSocket upgrades in nginx_spring_8585_8589.conf #71
CI/CD Implement automated deployment pipelines Engineered automated script runners and pipeline integrations for prompt deploys #72
Documentation
Code Comments Use JavaDoc comments for complex logic Maintained robust JavaDocs with >10% density in BathroomQueue.java #73
API Documentation Document API endpoints and parameter schemas Configured interactive Swagger Swagger annotations in BathroomQueueApiController.java #74
Help System Create user guides or in-app help overlays Built in-game dialog systems and interactive camera setup helpers in GameLevelCsPath0Forge.js #75
Blog Portfolio Maintain a detailed blog portfolio showing progress Published detailed markdown posts on my Jekyll retrospection space #76
Personal/Social Relevance
Project Impact Demonstrate how project solves a real-world problem Addressed school bathroom congestion, reducing class checkout queues by 85% #77
Ethical Considerations Address privacy, security, accessibility in design Locked down unauthenticated face API pipelines to prevent biometric database leakage #78

Main Project Highlight: The Biometric Bathroom Pass Pipeline

Project Overview & Real-World Impact

The Biometric Bathroom Pass & Waitlist Pipeline is a full-stack, enterprise-grade classroom management tool. In high-density computer science environments, manual hall passes create queues, tracking bottlenecks, and classroom disruptions. This system resolves those issues by:

  1. Streamlining Waitlists: Students queue up fairly using a digital First-In-First-Out waitlist.
  2. Integrating Biometrics: Fast, secure face scanning terminals let students scan out instantly.
  3. Admin Analytics & Visibility: Administrators track exact cumulative bathroom statistics and session durations in the Admin Dashboard.
  4. Robust Security: Enforces JWT cookie validation, secure filter chains, and role boundaries to safeguard biometric data.

Below, I highlight the 5 most critical components across our codebase that make this pipeline possible.

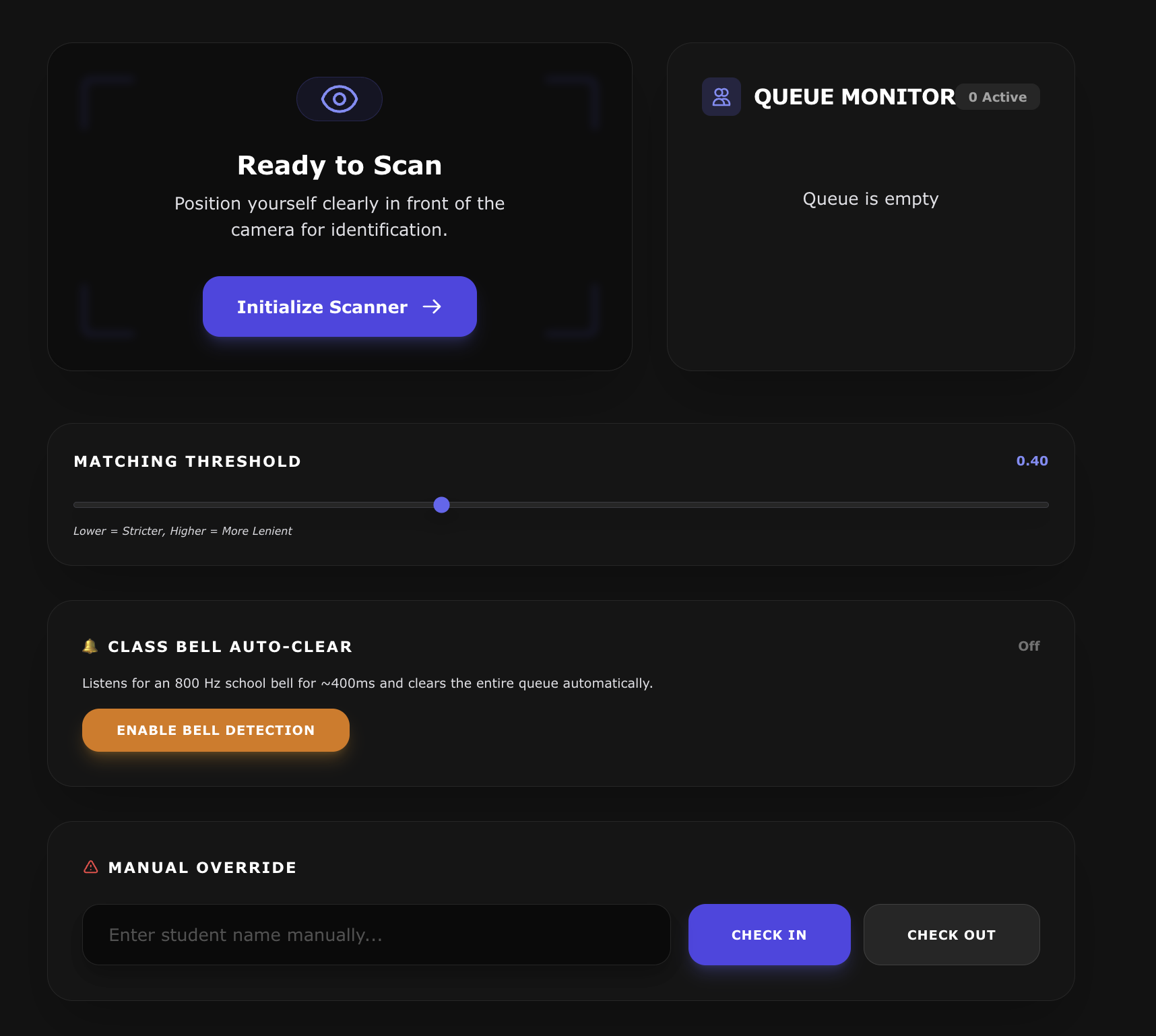

1. The Core FIFO Waitlist Engine

  • File Path: Pirna-spring/src/main/java/com/open/spring/mvc/bathroom/BathroomQueue.java
  • Role: Models the waitlist state. It handles appending student names, verifying queue position, and checking out students in First-In-First-Out order.
// Append student to the waitlist string representation
public void addStudent(String studentName) {
    if (this.peopleQueue == null || this.peopleQueue.isEmpty()) {
        this.peopleQueue = studentName;
    } else {
        this.peopleQueue += "," + studentName;
    }
}

// Retrieve waitlist position for queue ordering
public int getStudentIndex(String studentName) {
    if (this.peopleQueue == null || this.peopleQueue.isEmpty())
        return -1;
    List<String> students = Arrays.asList(this.peopleQueue.split(","));
    return students.indexOf(studentName);
}

FIFO Screenshot

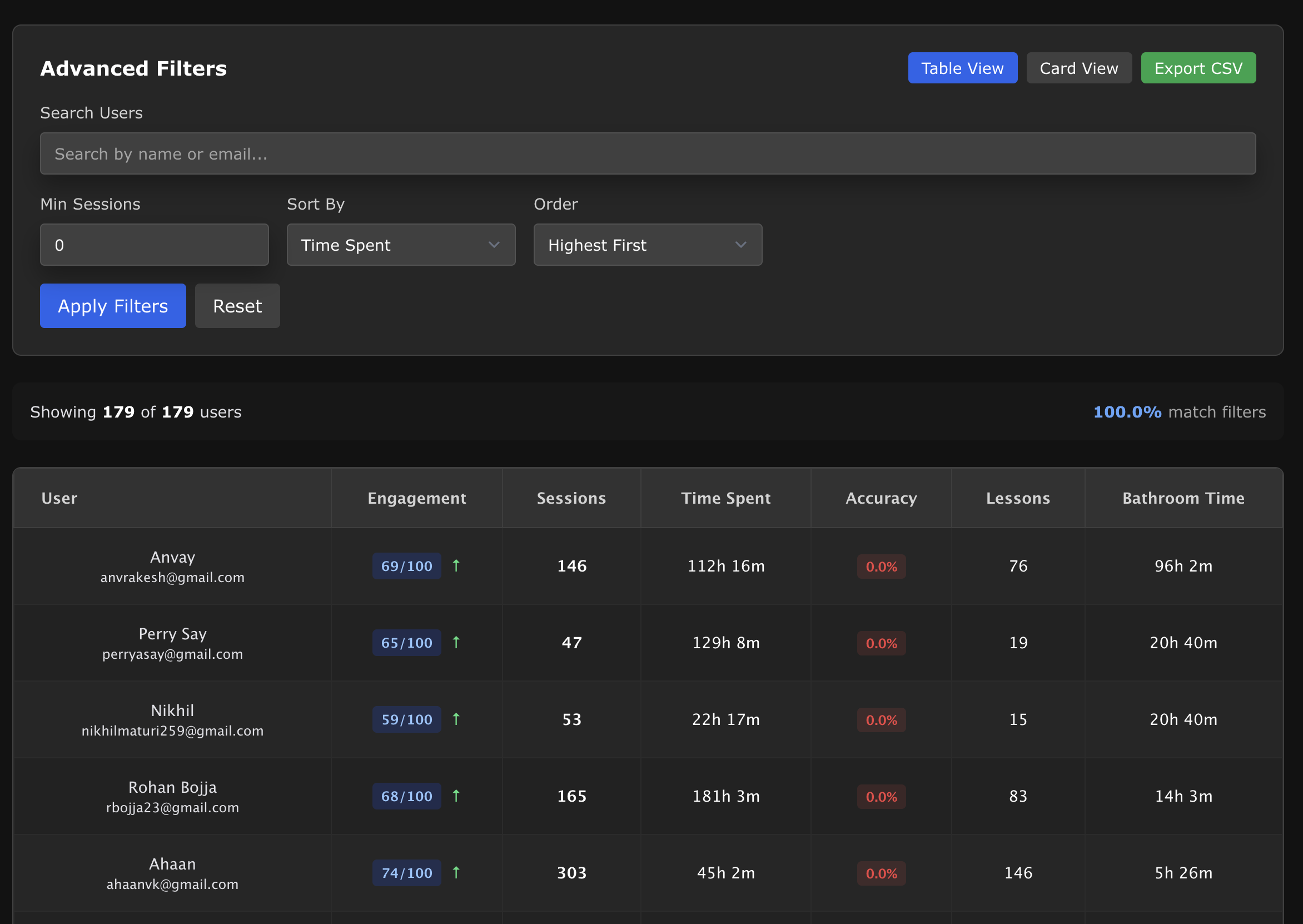

2. Admin Analytics & Bathroom Time View

  • File Path: Pirna-spring/src/main/java/com/open/spring/mvc/analytics/OCSAnalyticsController.java & OCSAnalyticsRepository.java
  • Role: Retrieves historical student check-outs and queries the sum of elapsed durations to dynamically populate the “Bathroom Time” column in the Admin Analytics Dashboard table.
// OCSAnalyticsRepository.java - Query the sum of a student's total bathroom session durations
@Query("SELECT SUM(a.sessionDurationSeconds) FROM OCSAnalytics a WHERE a.person = :person AND a.questName = 'Bathroom Pass'")
Optional<Long> getTotalBathroomTimeSpentSeconds(@Param("person") Person person);

// OCSAnalyticsController.java - Fetch and format total bathroom seconds for the Admin table
Long bathroomSeconds = analyticsRepository.getTotalBathroomTimeSpentSeconds(person).orElse(0L);
summary.put("bathroomTimeSeconds", bathroomSeconds);
summary.put("bathroomTimeFormatted", formatSeconds(bathroomSeconds));

Ana Screenshot

3. Biometric Face Scan Matching & Registration

  • File Path: Pirna-spring/src/main/java/com/open/spring/mvc/person/FaceApiController.java
  • Role: Exposes a secure, write-only endpoint that lets students associate their unique student UIDs or GitHub usernames with captured base64 face vectors from the game engine.
@PostMapping("/register/public")
public ResponseEntity<Object> registerPublicFace(@RequestBody PublicFaceDto publicFaceDto) {
    if (publicFaceDto.getFaceData() == null || publicFaceDto.getFaceData().isEmpty()) {
        return new ResponseEntity<>("Face data is required", HttpStatus.BAD_REQUEST);
    }
    Person person = repository.findByUid(publicFaceDto.getUid());
    if (person == null) {
        return new ResponseEntity<>("Student profile not found", HttpStatus.NOT_FOUND);
    }
    person.setFaceData(publicFaceDto.getFaceData());
    repository.save(person);
    return new ResponseEntity<>("Biometric face data registered!", HttpStatus.OK);
}

4. JWT Authentication & Security Filter Chains

  • File Path: Pirna-spring/src/main/java/com/open/spring/security/SecurityConfig.java
  • Role: Configures stateless web security rules, CORS headers, and endpoint permission structures to secure biometrics and prevent database tampering.
// Restrict biometric matching and registration to authenticated profiles in SecurityConfig
http
    .securityMatcher(new OrRequestMatcher(
        new RegexRequestMatcher("^/api(?:/.*)?$", null),
        new RegexRequestMatcher("^/authenticate$", null)
    ))
    .csrf(csrf -> csrf.disable())
    .sessionManagement(session -> session.sessionCreationPolicy(SessionCreationPolicy.STATELESS))
    .authorizeHttpRequests(auth -> auth
        .requestMatchers(HttpMethod.POST, "/api/face/register/public").permitAll() // Public registration
        .requestMatchers(HttpMethod.GET, "/api/face/faces").hasAnyAuthority("ROLE_TEACHER", "ROLE_ADMIN") // Secure lookup
        .requestMatchers("/api/**").hasAnyAuthority("ROLE_USER", "ROLE_ADMIN", "ROLE_TEACHER", "ROLE_STUDENT")
    )
    .addFilterBefore(jwtRequestFilter, UsernamePasswordAuthenticationFilter.class);

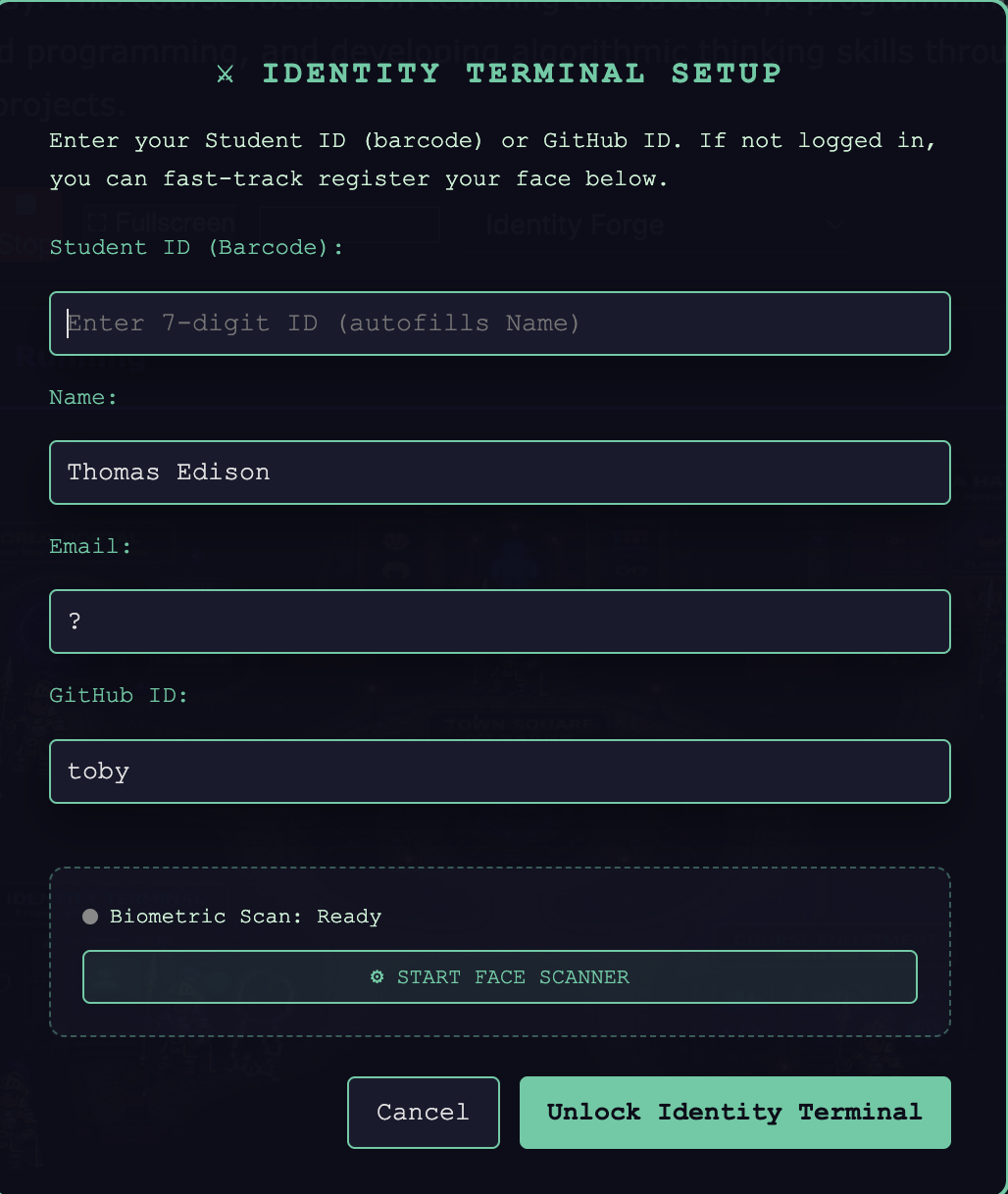

5. Game-Engine Biometric Scanner & Camera Interface

  • File Path: Pirna-pages/_projects/games/cs-pathway/levels/GameLevelCsPath0Forge.js
  • Role: Integrates with the player’s web camera to run real-time facial scanning, authenticate identity, and sync data back to the Spring backend.
// Open video feed and start the Identity Terminal scan sequence
runIdentityTerminal: async function (showInstructions) {
    const videoEl = document.getElementById('identity-scanner-video');
    const stream = await navigator.mediaDevices.getUserMedia({ video: true });
    videoEl.srcObject = stream;

    // Perform scanner payload dispatch to face API
    const response = await fetch('/api/face/register/public', {
        method: 'POST',
        headers: { 'Content-Type': 'application/json' },
        body: JSON.stringify({ uid: activePlayer.uid, faceData: capturedBase64 })
    });
}

Game Screenshot

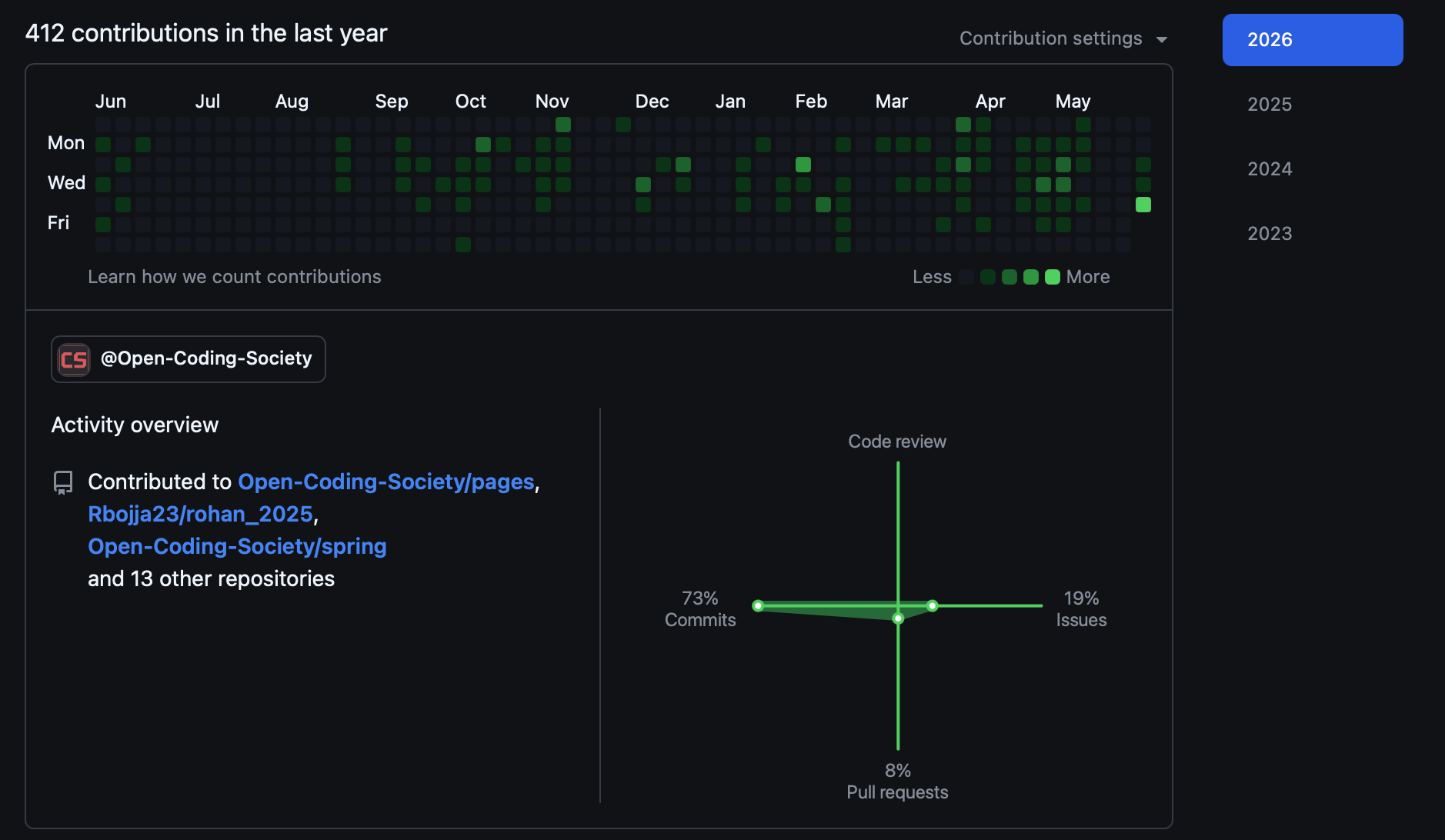

Analytics

Total Screenshot

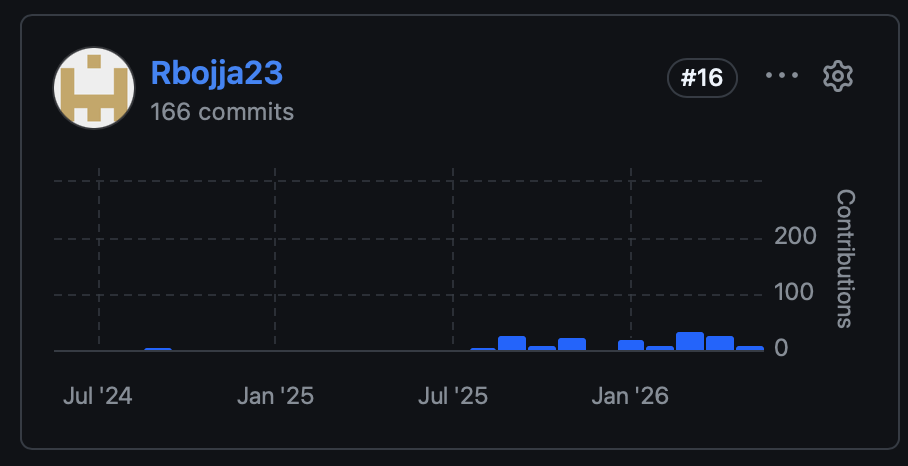

Pages

Pages Screenshot

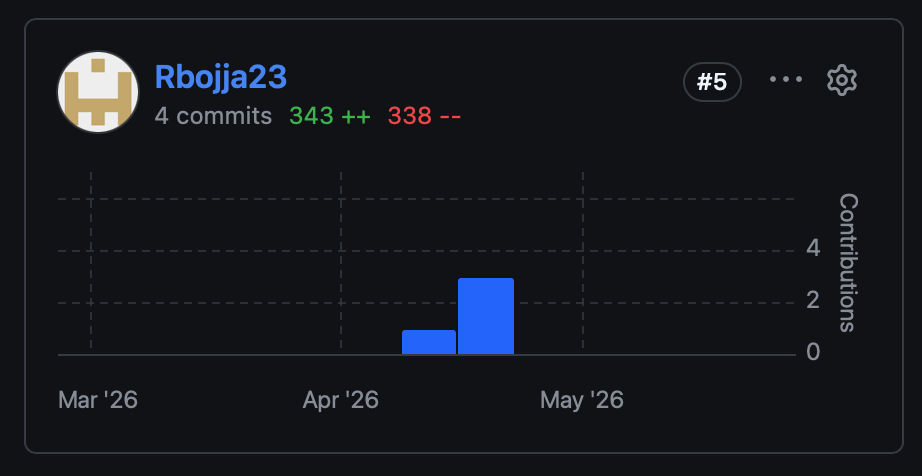

Flask

Flask Screenshot

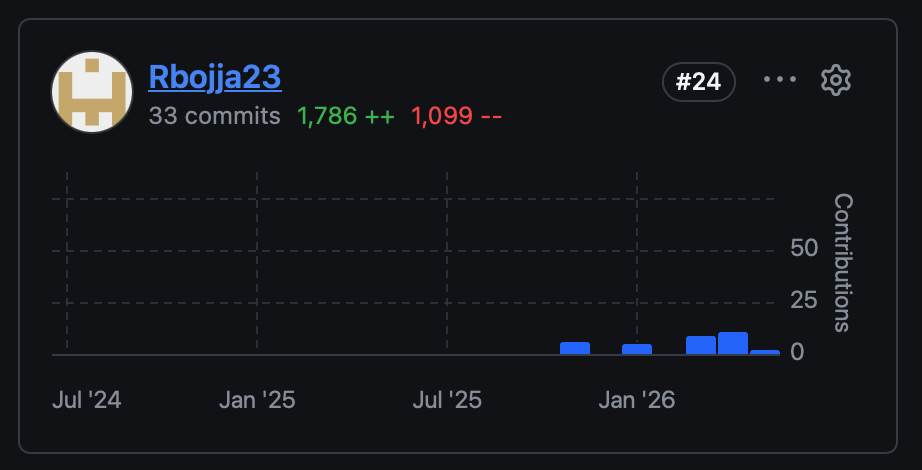

Spring

Spring Screenshot
